Portable EV Charger
Compact, Easy Carrying – Smart Charging at Home and On the Go.
Safe and reliable Over current/Over heat multiple protection
More coveninet Good compatibility, plug and play
Multi level charging current
Scheduling charging According to peak-valley electricity price
Small and beautiful apperance Wall mounted/portable
Waterproof, dustproof, flame retardant
Flexible Option

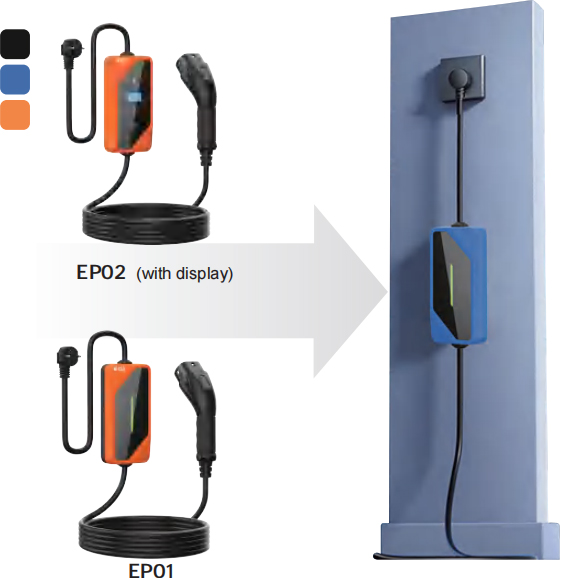

Portable type design, easily to carry- Can be charged using home AC socket
- Cable length 5 meters (can be customized)
High Texture Design
- Multi color indicator + OLED screen
- Current adjustment with touching buttons
- Customizable display screen
Reliable and Safety
- Type A 30mA + 6mA DC leakage protection
- Multiple protection based on software and hardware
- CE(EU), GB(China), ROHS approved
General Specifications
| Item | EP01/EP02-S16 | EP01/EP02-S32 | |
| Basic info | Maximum Power | 3.5KW/16A | 7KW/32A |
| Phrase | Single | ||
| Voltage Range | AC230V±10% | ||
| Frequency | 50/60Hz | ||
| Output Current | ≤16A | ≤32A | |
| Cable Length | Standard 5 meters(can be customized) | ||
| Connector | GB/T(CN) | Type 2(EU) | |
 |
 |
||
| Display screen | 3.5” LCD (Only EP02) | ||
| Dimension | 210x90x48mm(H*W*D) | ||
| Flame Retardant Grade | UL94V-0 | ||
| Colour | Black(Front)+Black(Back) or OEM Color | ||
| Indicator | ✔ | ||
| Display | ✔ | ||
| Schedule Charging | ✔ | ||
| Safety | Net Weight | 2.4kg | 3.7kg |
| Ingress Protection | IP65, IK08 | ||
| Residual Current Protection | Type A 30mA + 6mA DC | ||
| Overload Protection | ✔ | Over/Under Voltage Protection ✔ | |
| Short Circuit Protection | ✔ | Earthing Leakage Protection | |
| Ground Protection | ✔ | Surge Protection | |
| Over Temperature | ✔ | ||
| Standard | IEC 61851-1:2017; IEC 62196-1/2 | ||
| Environment | Installation | Wall Monted/Portable | |
| Storage Temperature | -40~75°c | Work Temperature -30~55°c | |
| Humidity | 5%~95% | Noise <50dB | |
| Vibration | <0.5g No Severe Vibration Impact | ||
| Altitude | <2000m | ||
