KF03 Jump Starter & Tire Inflator
PRESET TIRE PRESSURE CLICK TO START FULL AUTOMATIC STOP
General Specifications
| SUWATT TECHNOLOGY CO., LTD | |
| PRODUCT SPECIFICATION | |
| Product Name | 2 in 1 Powerful Tire Inflator & Jump Starter |
| Model No. | S02 |
| File No. | V1 |

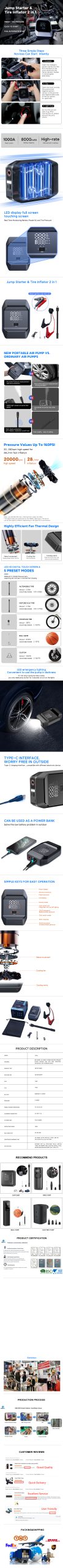

| Photo Overview | |
| Application | Car/Motorcycle/Bicycle etc tire inflator and suitable for all inflatable balls, and car Jump starter. |
| Housing Material | ABS Cabinet |
| Cylinder Material | Metal |
| Display | LED digital display dual readings |
| Buttons | 6 Operation Buttons, ON/OFF, “+””-“, Mode, LED Light |
| Description The S02 is an all-in-one emergency jump starter and portable air compressor. It features a rounded, lightweight design, a novel appearance, and a large display screen. Equipped with a built-in high-precision air pressure sensor, it offers five preset modes for safe and user-friendly pressure adjustment: Ball | Bicycle | Motorcycle | Car | Custom (2-160 PSI).Simply select the corresponding mode to inflate your item. The pump will automatically shut off when reaching the system’s preset pressure, ensuring safe operation for users unfamiliar with pressure settings. Simultaneously, the S02 functions as a portable emergency jump starter. For optimal ignition performance, ensure the device has 50% or higher battery charge. Features zero-volt activation capability. |
|
| Specification | |
| Product size | 187 * 114 * 52.7mm |
| Battery Capacity | 2000mAh*4 /14.8V/29.6Wh |
| Battery overcharge/overdischarge protection voltage | 16.8V/12V |
| Charging time | 3-4H |
| Display | LED digital display dual readings |
| Operating power | 100w |
| Operating temperature | -10℃~45℃ |
| Air pressure | 2-160PSI |
| Air flow | 26-28L/min |
| Working time | 25-40min |
| Operating noise | ≦85dB (1m distance) |
| Charging interface | TYPE-C |
| Power bank | 5V~12V/1A~2A |
| Charging parameters | 5/3A,9V3A,12V/2.5A,15V/2A,20V/1.5A |
| Jump starter | Compatible for Petrol & Diesel vehicle powered by 12V battery |
| Jump start current | 400A/500A/600A |
| Jump start current (Peak) | 1000A/1200A/1400A |
| Protection | High and low voltage protection, high temperature protection, protection of opposite connection, short-circuit protection |
| Accessories | |
| Manual | Color Black and white Language English Material 80g paper, 70 * 100mm Fold |
| Accessories Content | Hose*1, Presta valve*1, Ball needle*1, cloth bag*1, TYPE-C cable*1, Jump Starter clamp *1 |
| QTY | 6 |
| Packaging | |
| Product packaging (Color box) | Dimension 126x194X109mm Material 350g single copper paper KE |
| N.W | 776g |
| G.W | 1160g |
| Outer box packaging (Carton) | Dimension 410x268x350mm QTY 12pcs G.W 14.5kg |
| Certificate | |
| Certifications | FCC CE ROHS PSE MSDS UN38.3 |
