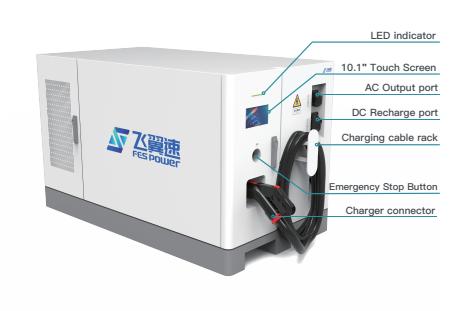

Meta Mobile EV Charger Without Motor Drive Chassis
The Parwatt Meta mobile EV charger is a versatile Electric Vehicle Supply Equipment (EVSE). It’s not just a DC charging station, but also battery-integrated, enabling flexible charging in any location
DC Fast Charging
Output power reach 46-60kW to provide wonderful charging experience.
AC Power Source
Can work as battery for providing AC power supply (AC240-380V).
Max. Utilization Of Parking Space
With no change to a parking facility to meet the EV charging need.
Flexible Battery Recharge Methods
Flexible choose AC & DC power for battery recharging.
Quick Install
Lightweight design for simple setup anywhere.- Works with 400V AC input for easy power connection.
- Custom 5m GB/T or CCS2 cable for flexible use.
Bright Look
- 10.1" touch screen for clear control.
- LED indicators show status at a glance.
- Tough IP54 build for lasting durability.
Steady Safety
- Type A 30mA + 6mA DC leakage protection.
- Built-in guards against overvoltage and surges.
- CE-certified, meets GB/T18487.1/IEC 61851-1 standards.
General Specifications
| Basic Parameters | Meta+ 46kW | Meta+ 60kW |
|---|---|---|
| EV Charging Power/Battery Energy | 46kW / 46 kWh | 60kW / 60 kW·h |
| Dimension (W*D*H) | 1500 * 800 * 880mm | |
| Weight | 510 kg | 710 kg |
| Ingress Protection Level | IP54 | |
| Power Output System | ||
| Power Output System | Meta+ 46kW | Meta+ 60kW |
| EV Charging Voltage | 200-1000V DC (Constant power voltage: 400-1000 V DC) | |
| EV Charging Current | 150A | 250A |
| Charging Connector Type | GB/T, CCS2 (5 meters) | |
| Charging Authentication | Plug & Charge | |
| AC Power Output | AC 240-380V | |
| Battery Recharging System | ||
| Battery Recharging System | Meta+ 46kW | Meta+ 60kW |
| Battery Power Capacity | 46 kW·h | 60 kW·h |
| AC Recharge Voltage / Frequency | Three-phase 400V AC ± 10% (50/60Hz) | |
| AC Recharge Power | 40kW | |
| DC Recharge Voltage (Optional) | 400-490V DC | 540 – 650V DC |
| DC Recharge Power (Optional) | Max: 46kW DC (Optional) | Max: 60kW DC (Optional) |
| Recharge ports | GB/T, CCS2 (5 meters) | |
| Battery Type | LiFePO4 | |
| Ingress Protection Level | IP67 | |
| Battery Cooling System | Liquid-cooling | |
| Other Parameters | ||
| Other Parameters | Meta+ 46kW | Meta+ 60kW |
| Working Temperature | -25℃ ~ 55℃ | |
| Working Humidity | ≤95% | |
| Vibration | < 0.5g | |
| Noise | < 65 dB | |
| Working Altitude | < 2000 m | |
| Safety | ||
| Safety | Overload Protection | Over/Under Voltage Protection |
| Surge Protection | Overload Protection | |
| Over Temperature | Insulation On-line Monitoring | |
| Emergency Stop | ||
| Certification Standard | GB/T18487.1/IEC 61851-1/IEC62619 | |
