Ultra Rapid EV Charger with Battery-buffered
Ultra-Fast, Cost-Effective EV Charging with Smart Battery-Buffered Technology – Store Off-Peak Energy for Sustainable Mobility and Maximum Savings.
No need for grid utility upgrade (Fast deploy)
-Eliminate costly substation upgrades ($2 Million saving)
-Deploy in areas with limited grid capacity
-Avoid 3-5 years of grid upgrade timelines.
Flexible Extension
Support power modules and energy-storage module extension to meet increasing charging demand.
Photovoltaics Function
An external DC/DC power module with MPPT function enables the use of photovoltaic energy.
Dynamic Power Sharing (With smart EMS)
Optimizes energy distribution between grid power (off-peak charging) and battery recharge (peak demand) Reduces energy costs by 30-50% through: Peak shaving Demand charge avoidance
Future-proof
Upgrade the system without local grid infrastructure upgrades, and adjust power for different charging demands.
Smooth Installation
Multiple power configurations for easy setup.- Supports 400Vac input with dynamic distribution.
- Customizable CCS2 connectors for flexible use.
Smart Display
- 10-inch touchscreen for intuitive operation.
- Multi-color indicators for real-time monitoring.
- Rugged IP65 design for outdoor reliability.
Strong Safety
- Type A 30mA + 6mA DC leakage protection.
- Advanced safeguards with OCPP 1.6J/2.0 protocol.
- CE-certified, operates safely at 600kW max power.
General Specifications

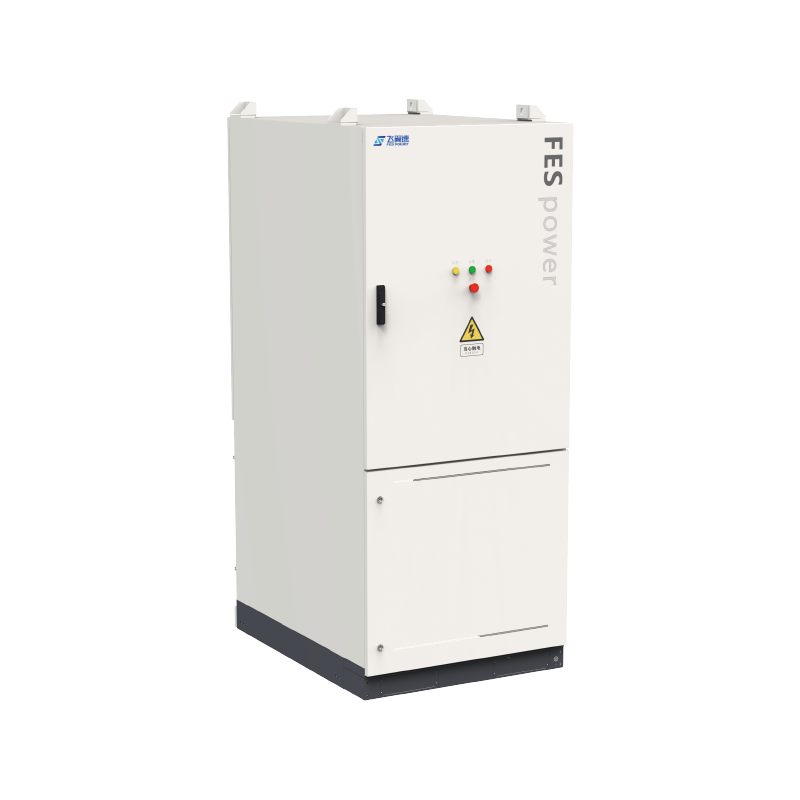

| Battery Energy Storage System | Specifications |
|---|---|
| Battery Type | LiFePO4 |
| Dimension (W × D × H) | ≤ 1000×1500×2000mm |
| Battery Energy (BoL, Beginning of Life) | 150kWh-215 kWh |
| Cycle Life | 6,000 cycles @ 70% SOH or ≥8 years |
| Battery Voltage Range | 580V-864V |
| Rated Voltage | 700V |
| Max Charge & Discharge | 1C |
| Battery Capacity | 280Ah |
| Cooling | Liquid-cooled/Air-cooled |
| Communication | Modbus TCP |
| Power cabinet | Specifications |
|---|---|
| Dimension (W × D × H) | ≤ 1000×1500×2000mm |
| Operating Temperature | -25℃~55℃ |
| Output Voltage | 200Vdc-1000Vdc |
| Max. Output Power | 600kW Bidirectional AC/DC: approx. 125-250kW; DC/DC: 300-600kW |
| Input Voltage / Frequency | 1×400Vac (±10%) 3-phase+N+PE (50Hz±1Hz) |
| Communication | Ethernet/CAN/RS485, 4G/LTE, Wi-Fi (Optional) |
| Noise | <60dB@1m |
| Work Mode | Grid-tied & off-grid <55dB@1m with hardware silencer at normal mode; <45dB@1m at Eco mode; <35dB@1m at silent mode at night |
| Cooling | Air-cooled/Liquid-cooled |
| 600A Liquid cooling dispenser | Specifications |
|---|---|
| Charging Connector Number | 1 (CCS2) |
| Output Voltage | 200Vdc-1000Vdc |
| Max. Output Power | 480kW |
| Output Current | 600A |
| Cooling | Liquid-cooling |
| Power Distribution | Dynamic distribution |
| Operating Temperature | -25℃~55℃ |
| Relative Humidity | ≤95%, no condensation |
| Noise | <60dB@1m |
| Protocol | OCPP 1.6J/2.0 |
| Authentication | POS machine (CCV/Apollo Payter, etc.) |
| 250A Fan cooling dispenser | Specifications |
|---|---|
| Charging Connector Number | 2 (CCS2) |
| Output Voltage | 200Vdc-1000Vdc |
| Max. Output Power | 150kW |
| Output Current | 250A continuously |
| Cooling | Air-cooled |
| Power Distribution | Dynamic distribution |
| Operating Temperature | -25℃~55℃ |
| Relative Humidity | ≤95%, no condensation |
| Noise | <60dB@1m |
| Protocol | OCPP 1.6J/2.0 |
| Authentication | POS machine (CCV/Apollo Payter, etc.) |
Success Stories
Parwatt released the 300kW to 420kW ultra-fast charger with Max. output current 400Acan charge a vehicle battery up to 80% in just15 minutes.
Parwatt released the 300kW to 420kW ultra-fast charger with Max. output current 400Acan charge a vehicle battery up to 80% in just15 minutes.
Parwatt released the 300kW to 420kW ultra-fast charger with Max. output current 400Acan charge a vehicle battery up to 80% in just15 minutes.
